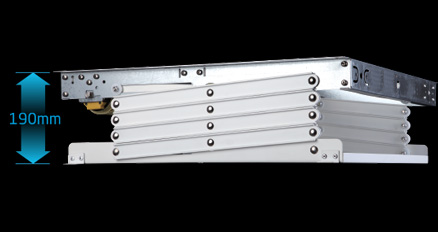

SUPER THIN STRUCTURE
Designed with high strength steel, we refined the simplest structure. Take model ME1000 with 1 meter range for example, the minimum installation height is just 190mm.

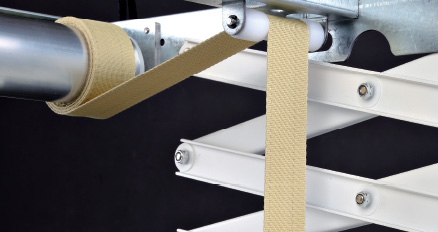

HEAVY-DUTY FIREPROOF BELT
Equipped with heavy-duty tubular motor and fireproof belt, the operation of the lift is smooth and easy.

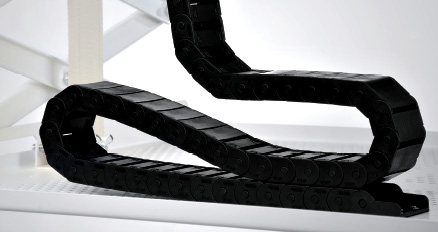

CABLE MANAGEMENT
All sorts of cables are well managed inside the cable belt which ensure the smooth operation of the lift.

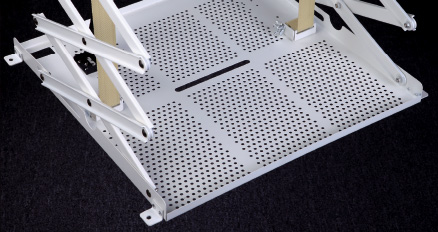

INSTALLATION PANEL
Universal Installation – Equipped with universal panel for different types of projectors.

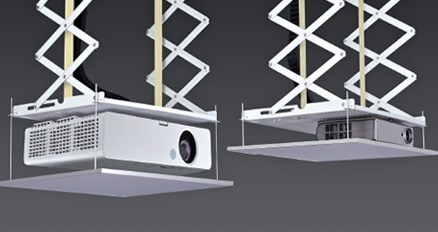

ADAPTABLE FOR VARIOUS TYPES OF PROJECTORS
Adjustable Height – By adjusting the height of the screw bar, the suitable height for projector is flexible up to 200m, thicker than this can be achieved with extended screw bars.

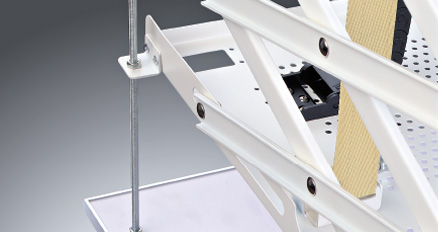

ADJUSTABLE SCREW BAR
Specified for simplified projects – Targeting the needs for simple structures in different projects, the standard accessories are highly simplified with only power connection interface, it can be upgraded to be in-line switch or remote control based on requests.

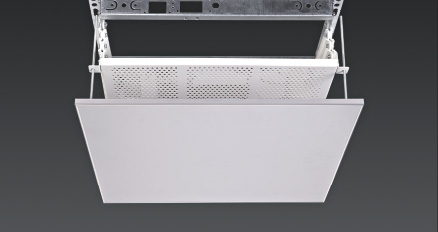

CEILING DECORATION PANEL
Replaceable Ceiling Decoration – The ceiling decoration board can be easily replaced to match different installations when needed.
SPECIFICATIONS:
- Product Dimensions(mm): 574x550x520
- Net Weight(kg): 32
- Max Projector Dimensions (With Wire And Lens)(mm): 460x240x460
- Max Load(kg): 15
- Power(w): 170
- Max Travel(mm): 4000
- Noice(dB): ≤45dB
- Voltage(v): 220V/110V
- Ceiling Opening Dimensions(mm): 605×605
